REMOTE CONTROL SYSTEM

MARINE DIESEL MAIN ENGINE REMOTE CONTROL DEVICE BMS-2000II&EMS-200II

Carried on the concept of BMS-2000, which have been delivered more than 500 sets, this Marine Diesel Engine Remote Control System have integrated the new electrnics technologies.
LCD display, which had gained reputation of BMS-2000, is renewrd and installed at both W/H and C/R as standard. Additionlly, back-up control is standard spec.
This satisfactory system already have acquired CE-mark and type approval from each classification such as ABS, DNV, LR, and NK.
Also, this system is desinged to be flexible for rule and spec changes.

EMS-200 II

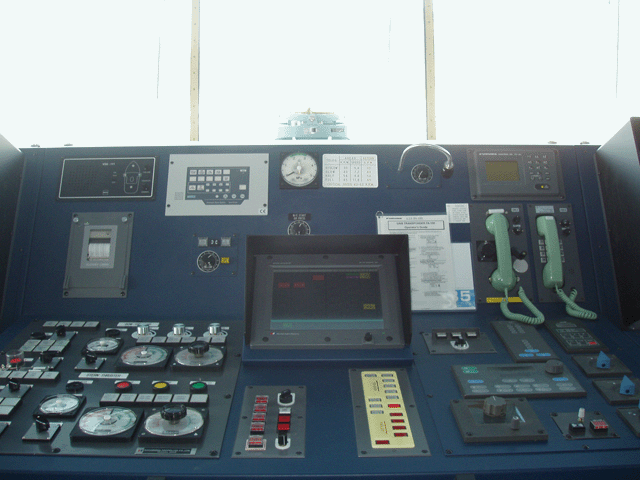

BMS-2000 II

PRODUCT OUTLINE

Our remote control system for low-speed diesel engine applies state-of -the-art technology which is based on our abundant experience in this field, exceeding 40 years and 3,780 sets (as of September 2007) . It was developed in pursuit of cost efficiency and easy maintenance, while maintaining Mitsui's high standard for safety, and ease of operation.

SYSTEM CONFIGURATION

1) Engine Control System (ECS)
2) Engine Protection System (EPS)
3) Engine Maneuvering System (EMS)
4) Electronic Governor (MAG)
5) Engine Telegraph System (ETS)

Standard of C/R BACK-UP CONTROL module

In addition to integrated control module for ECS, EMS and RPM control function in MAG, the C/R BACK-UP CONTROL module for C/R control is provided in order to enhance the redundancy of remote control.

Adoption of Enlaged Color LCD to W/H&C/R

By adopting the color LCD of 12.1 inches with touch-control panel, the display area is unified and the contents enhances visual easiness.

Effective wiring works in console

The work becomes more effective by wiring with connectors for internal cables between components. In addition, it avoids mis-connection and realizes effective work for maintenance.

Continuous use of high reliable articles

The following articles have been continuously used, because their higher reliability has been confirmed by our previous system.
・Governor actuator and Servo Driver
・Speed Control Dial and RPM pick-up sensor
・Telegraph logger and Telegraph receiver
・Telegraph gong

Others

・Type approved system by ABS, DNV, LR, NK
・Standard of Pre-warning Shut down & Slow down
・Acquisition of CE mark

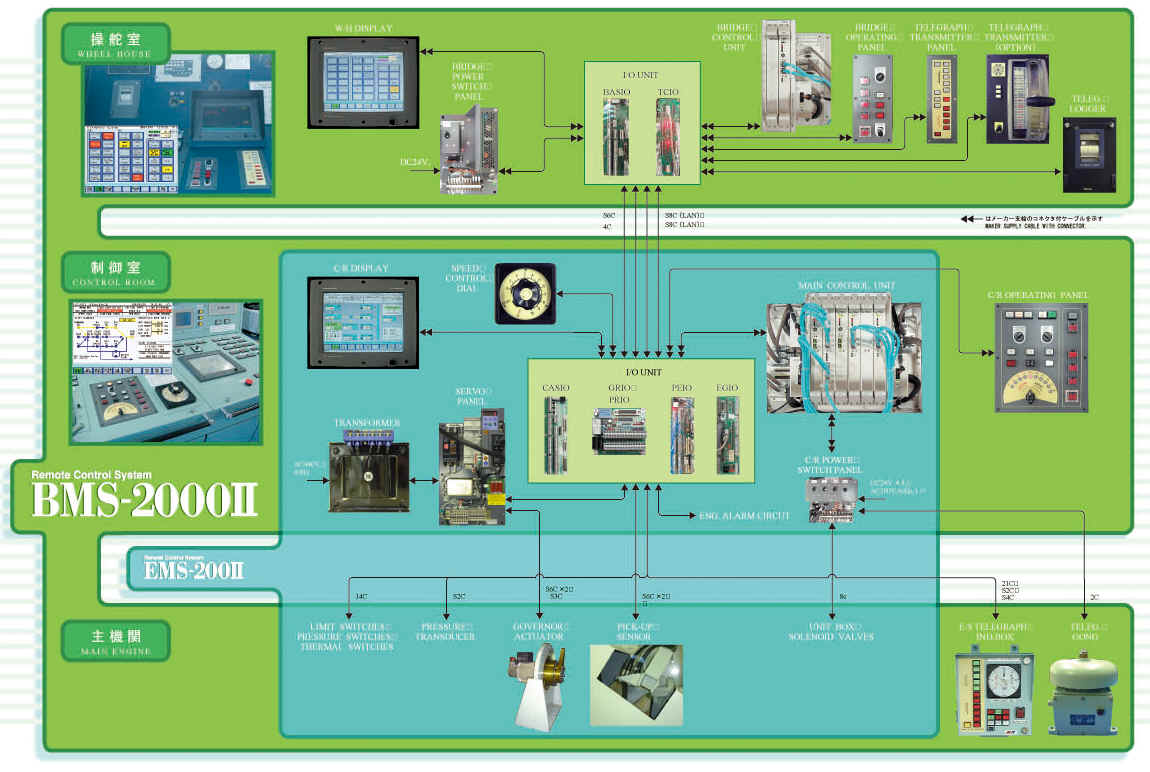

STRUCTUAL MAP
